Njabulo Stainless, a trusted manufacturer and supplier based in Cape Town, South Africa, offers premium-quality Stainless Steel Chequered Plates that combine strength, style, and durability. These plates feature a raised diamond or check pattern that provides excellent grip and a visually appealing finish. They are ideal for flooring, ramps, stair treads, and industrial platforms where slip resistance and safety are essential. Manufactured using high-grade stainless steel, Njabulo Stainless ensures every chequered plate is corrosion-resistant, easy to clean, and long-lasting, making it a reliable choice for both industrial and architectural applications.
Stainless Steel Chequered Plates are typically made from grades 304, 304L, 316, and 316L stainless steel, known for their high chromium and nickel content, which provides superior corrosion and oxidation resistance. These plates have excellent tensile strength, hardness, and ductility, ensuring they can withstand heavy loads and harsh conditions. The raised checkered pattern enhances slip resistance, while the stainless steel base offers long-term durability and low maintenance. Even in moist or chemical environments, the plates retain their shine, strength, and performance.
ASTM A182 / ASME SA182
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
1000mm x 2000mm, 1000mm x 2500mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm
| Grade | C | Mn | P | S | Si | Cr | N | Ni | Fe |
| SS Chequered 304 Plates | 0.07max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | – | min: 8.0 max: 10.5 | – |
| SS Chequered 304L Sheets | 0.03max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | 0.10 max | min: 8.0 max: 12.0 | – |
| SS Chequered 304H Plate | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | 0.75 max | 2.0 max | min: 0.04 max:0.10 | 0.045 max | 0.10 max | 0.03 max | – |
| SS Checkered 316 Sheets | Min | – | – | 0 | – | – | 10.0 | 16.0 | – |
|---|---|---|---|---|---|---|---|---|---|
| Max | 0.08 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Checker 316L Plates | Min | – | – | – | – | – | 10.0 | 16.0 | – |
| Max | 0.03 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Chequered 316H Sheet | Min | 0.04 | 0 | – | 0.04 | – | 10.0 | 16.0 | – |
| max | 0.10 | 0.75 | 0.045 | 0.10 | 0.03 | 14.0 | 18.0 | – |
| Grade | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| Stainless Steel 304 / 304L Checkered Plate | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 304H Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 40 % |
| Stainless Steel 310 Checker Plate | 7.9 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1402 °C (2555 °F) | 40 % |
| Stainless Steel 316 Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 316L Checker Plate | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1399 °C (2550 °F) | 35 % |
| Stainless Steel 317 Checker Sheets | 7.9 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 321 Checkered Plates | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1457 °C (2650 °F) | 35 % |
| Stainless Steel 347 Checker Sheets | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1454 °C (2650 °F) | 35 % |
| Stainless Steel 904L Checker Plate | 7.95 g/cm3 | Psi 32000, MPa 220 | Psi 71000, MPa 490 | 1350 °C (2460 °F) | 35 % |
Contact us to get a quick quote for your requirement.
304 stainless steel checker plates are durable, non-corrosive, and offer a slip-resistant surface. Ideal for industrial and commercial use, they combine strength with a lightweight, aesthetically pleasing design.
SS S30409 checker plates are high-quality stainless steel with excellent corrosion resistance and durability. Ideal for demanding environments, they offer a slip-resistant surface and maintain structural integrity under stress.

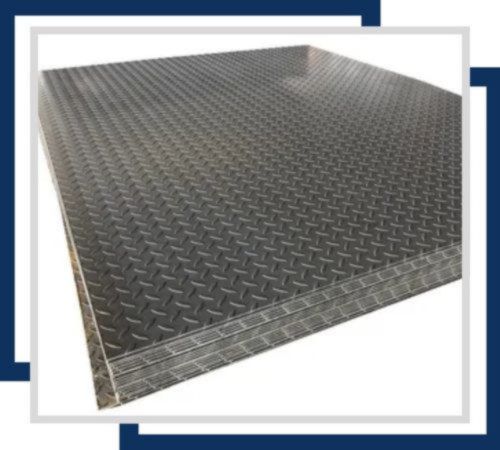

Stainless Steel S31609 chequered plates provide superior corrosion resistance and strength, making them ideal for marine and chemical environments. They offer excellent durability, slip resistance, and maintain integrity under harsh conditions.
Austenitic stainless steel chequered plates offer exceptional corrosion resistance, strength, and durability. Ideal for demanding environments, they provide a slip-resistant surface and maintain structural integrity in various industrial and commercial applications.
Quality is our prime concern, and hence our Stainless Steel Chequered Plates undergo exhaustive checks, like hardness, chemical analysis, PMI testing, flattening, micro/macro testing, pitting resistance, flaring, and IGC testing. We also supply related documentation as commercial invoices, packing lists, certificates of origin, and guarantee letters. In addition, we have our Third-Party Inspection Certificate to prove overall customer satisfaction to reassure customers of the guaranteed reliability and performance of our products.
Yes, Stainless Steel Chequered Plates are suitable for hygienic and sanitary applications due to their corrosion resistance, ease of cleaning, and non-porous surface, making them ideal for food and medical industries.
Stainless Steel Chequered Plates are generally resistant to galvanic corrosion when used in appropriate environments. However, in the presence of dissimilar metals and moisture, galvanic corrosion can occur if proper precautions aren’t taken.
Yes, Stainless Steel Chequered Plates are suitable for cryogenic applications due to their excellent low-temperature strength, durability, and resistance to brittle fracture, making them ideal for extreme environments.
To select the right Stainless Steel Chequered Plate, consider factors such as corrosion resistance, load-bearing capacity, surface finish, thickness, and environmental conditions, ensuring compatibility with your specific application needs.
Stainless Steel Chequered Plates are widely used in industrial flooring, stairways, platforms, vehicle steps, ship decks, and ramps due to their non-slip surface and durability. They are also used in architectural decoration, elevators, and interior designs for their clean and modern look. In industries like chemical processing, food, beverage, and marine sectors, these plates provide safe and hygienic surfaces resistant to corrosion and wear. Because they combine strength with an attractive finish, stainless steel chequered plates are ideal for both functional and aesthetic applications in factories, commercial spaces, and public infrastructure projects.
