Njabulo Stainless, located in Cape Town, South Africa, has built a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 317/317L Forged Fittings. Known for their precision engineering and outstanding durability, this company caters to a variety of industries, providing stainless steel solutions that adhere to global standards. With a strong emphasis on innovation, corrosion resistance, and performance, Njabulo Stainless guarantees that their forged fittings are perfect for even the most demanding environments. Supported by state-of-the-art manufacturing facilities and a talented technical team, they consistently deliver products that surpass customer expectations in terms of quality, strength, and exceptional service.
Stainless Steel 317/317L Forged Fittings boast higher levels of chromium (18–20%), nickel (11–15%), and molybdenum (3–4%) compared to standard stainless grades, which significantly boosts their resistance to corrosion and oxidation. The low carbon content in 317L enhances weldability and reduces the risk of carbide precipitation. These fittings showcase impressive mechanical properties, including a minimum tensile strength of 515 MPa, a yield strength of at least 205 MPa, and an elongation of around 35%. Their remarkable resistance to pitting, crevice corrosion, and chemical attacks makes them perfect for tough industrial and marine settings.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 317 / 317L UNS (S31700, S31703), DIN (1.4449, 1.4438)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel 317/317L forged fittings go through rigorous testing procedures, including dimensional testing, mechanical testing and corrosion resistance testing. The products are certified to meet international quality standards, including ASTM, ASME, and EN specifications, providing customers with guaranteed reliability and performance for a range of industrial applications

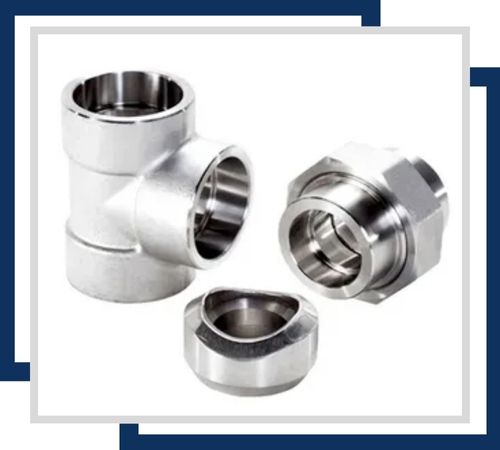

Stainless Steel 317 Socket Weld Fittings are renowned for their excellent corrosion resistance and are commonly used in high-pressure applications. They are available in sizes ranging from 1/8″ to 4″ and are manufactured to meet ASTM standards, ensuring strong, leak-proof connections.

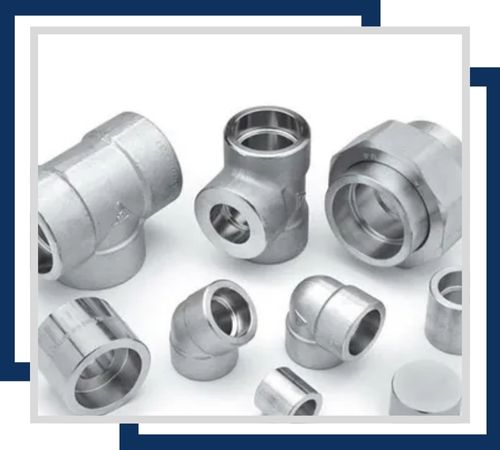

Offering high corrosion resistance, these fittings are designed for easy installation in various piping systems. Common sizes range from 1/8″ to 6″ NPT, providing versatility and robustness in handling fluids and gases.

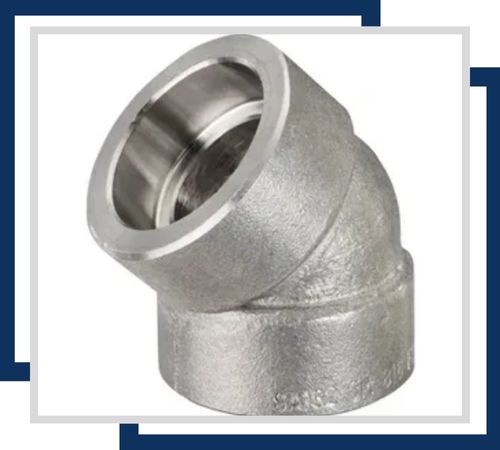

With superior corrosion resistance, this elbow allows for smooth directional changes in piping systems. It is available in sizes from 1/2″ to 4″ and is designed to meet ASTM specifications for high strength and durability.

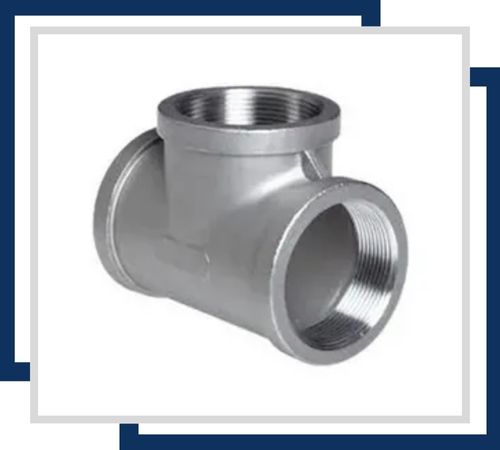

This fitting combines high corrosion resistance with structural integrity, ideal for branching pipes at a 90-degree angle. Available in sizes from 1/8″ to 6″ NPT, it ensures reliable and secure connections.

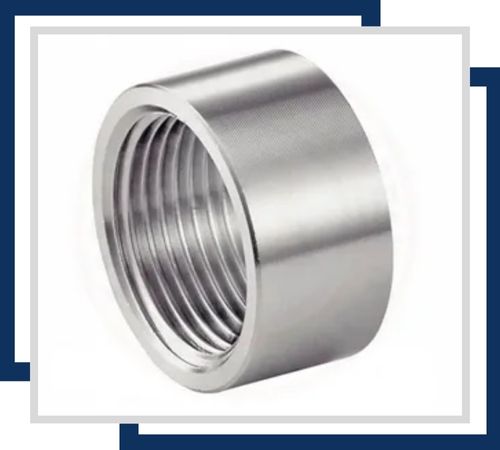

Known for its excellent corrosion resistance, this half coupling connects two threaded pipes or fittings. Common sizes include 1/4″ to 4″ NPT, providing a strong and durable link.

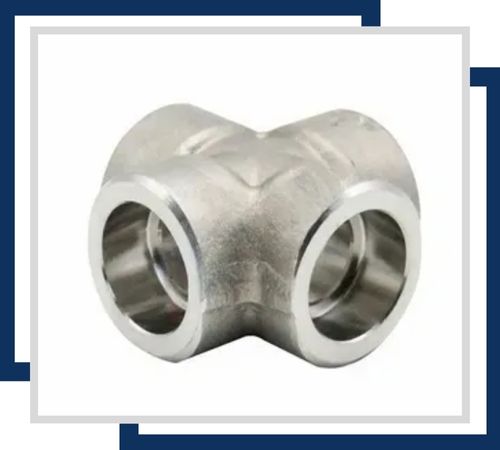

This cross-fitting offers exceptional corrosion resistance, enabling the intersection of four pipes. Sizes typically range from 1/2″ to 4″, adhering to ASTM standards for robustness and reliability in high-pressure applications.
You’ll find Stainless Steel 317/317L Forged Fittings widely utilized in sectors that require exceptional corrosion resistance and mechanical strength. They are commonly found in chemical processing, petrochemical plants, oil and gas refineries, food processing, and pharmaceutical industries. These fittings are particularly suited for handling corrosive substances like acids, chlorides, and sulfates. Additionally, they are employed in marine environments, pulp and paper production, and pollution control systems. Thanks to their excellent resistance to high-temperature oxidation and stress corrosion cracking, they provide leak-proof, long-lasting performance in critical piping systems and high-pressure applications.
