Njabulo Stainless stands out as a top-notch manufacturer and supplier of Stainless Steel 316L Flanges in Cape Town, South Africa. We pride ourselves on delivering high-quality products that are designed for strength, reliability, and exceptional resistance to corrosion. Crafted from low-carbon austenitic stainless steel, these flanges are incredibly resistant to pitting, crevice, and intergranular corrosion, making them perfect for use in chemical, petrochemical, and marine settings. Our Stainless Steel 316L Flanges offer outstanding weldability, durability, and precise dimensions, ensuring secure connections in piping systems. At Njabulo Stainless, we uphold rigorous quality standards, providing flanges that meet international specifications for long-lasting performance in tough industrial and structural environments.
Stainless Steel 316L Flanges are made up of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), with a low carbon content (≤0.03%) that boosts corrosion resistance and prevents carbide precipitation. This alloy boasts a tensile strength of around 485 MPa, a yield strength of 170 MPa, and an elongation of 40%, ensuring excellent toughness and durability. With a density of 8.0 g/cm³ and a melting range of 1370–1400°C, these flanges are well-suited for high-pressure and high-temperature applications, maintaining mechanical and chemical stability even in harsh environments.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 316L Flanges Njabulo Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Njabulo Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.
Stainless Steel 316L Threaded Flanges come in sizes from 1/2″ to 24″. Their corrosion resistance makes them ideal for low-pressure, non-welded applications. The threaded design allows for easy installation and removal without welding.

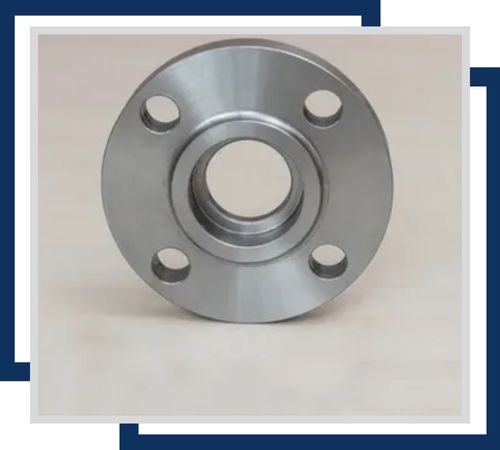

SS 316L Socket Weld Flanges are available in sizes from 1/2″ to 24″. They provide good corrosion resistance and are designed for small-diameter, high-pressure systems. The socket weld connection ensures a strong and secure joint.

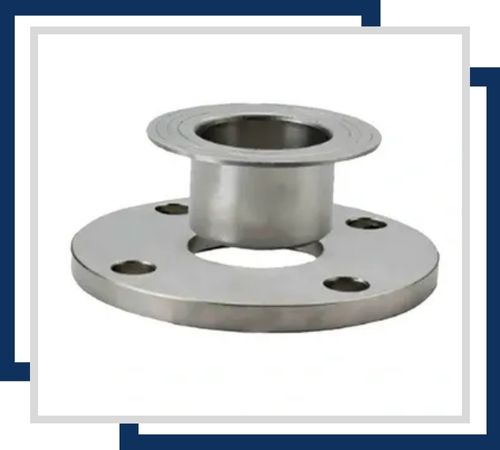

Stainless Steel 316L Lap Joint Flanges come in sizes from 1/2″ to 24″. They are highly corrosion-resistant and suitable for systems requiring frequent disassembly. The loose flange design allows for easy alignment and flexibility in installation.
Stainless Steel 316L Flanges are extensively utilized in industries that demand corrosion-resistant and durable piping connections. They are particularly well-suited for chemical processing, petrochemical facilities, marine applications, water treatment, and the food and beverage sector. These flanges are ideal for pipelines, pressure vessels, heat exchangers, and industrial piping systems where secure and leak-proof connections are crucial. Their low carbon content ensures excellent weldability, making them perfect for fabricated assemblies. At Njabulo Stainless, we are committed to providing top-quality flanges that meet the diverse needs of our clients.
