Njabulo Stainless, located in Cape Town, South Africa, stands out as a top-notch manufacturer and supplier of premium stainless steel products, including Stainless Steel 309H sheets and plates. Known for their unwavering commitment to quality, Njabulo Stainless delivers materials that are not only durable and corrosion-resistant but also capable of withstanding high temperatures, making them perfect for tough industrial settings. Their 309H sheets and plates are crafted to exact specifications, guaranteeing consistency and reliability for clients across various industries. With a strong emphasis on innovation, customer satisfaction, and prompt delivery, Njabulo Stainless has earned its reputation as a trusted partner for businesses in need of exceptional stainless steel solutions, both in South Africa and beyond.
When it comes to composition, Stainless Steel 309H sheets and plates are primarily made up of iron, along with 23–25% chromium, 12–14% nickel, and a higher carbon content than standard 309. This unique blend boosts high-temperature strength and creep resistance while ensuring excellent corrosion resistance. The material boasts a tensile strength of about 75 ksi, a yield strength of around 30 ksi, and an elongation of 40%. Its outstanding resistance to oxidation makes it a go-to choice for high-temperature applications. Plus, 309H retains its toughness even at elevated temperatures, making it ideal for welding and fabrication without compromising structural integrity under thermal stress.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | ASTM, ASME and API |
| Thickness | : | 4.0mm – 100mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | : | SS 309H, (UNS S30909) |
| Grade | Si | Cr | Ni | Mn | Si | C | P | S |
| SS 309H | 0.75 | 22.0-24.0 | 12.0-15.0 | 2.00 | 0.75 | 0.04-0.10 | 0.045 | 0.030 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 309H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

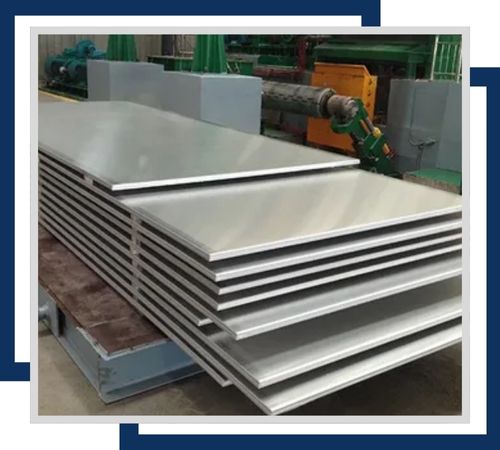

Due to excellent corrosion resistance, these sheets are manufactured at very high temperatures. Mechanical properties are improved by that manufacturing process. They are available with thicknesses in range of 3 mm up to 50 mm and width up to 2000 mm for structural and industrial applications.

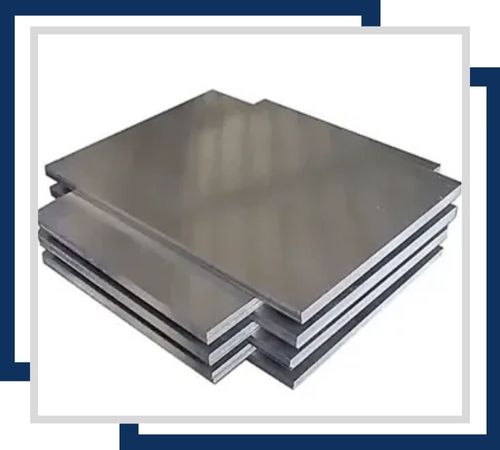

The cold rolled plates were produced at room temperature with a polish finish. The plates come in various thicknesses from 0.5 mm to 6 mm and widths as much as 1500 mm making it very ideal for precision and aesthetic purposes.

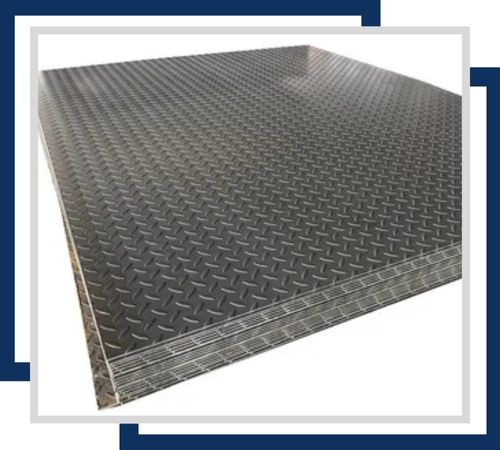

These plates offer excellent corrosion resistance and a textured surface for improved grip and slip resistance. They are usually available in thicknesses from 3 mm to 10 mm and dimensions up to 2000 mm x 1000 mm, and are used in flooring and safety applications.

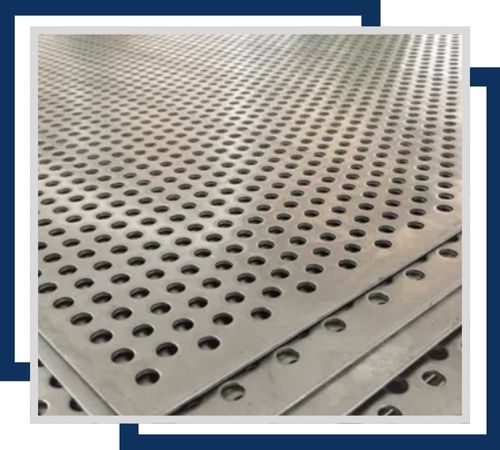

The perforated sheet has strong resistance to corrosion with various hole patterns for functional as well as for aesthetic purposes. Sizes are commonly between 0.5 and 6 mm in thickness, and up to 2000 mm x 1000 mm in dimensions to be used in filtration and ventilation.

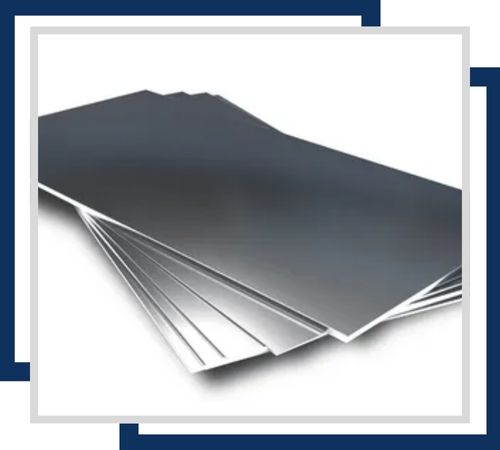

These thin sheets give good corrosion resistance and are applied to spacing and levelling accurately. The availability is as thin as 0.1 mm, with up to 1000 mm width. These sheets are of crucial use for aligning machinery and construction work.

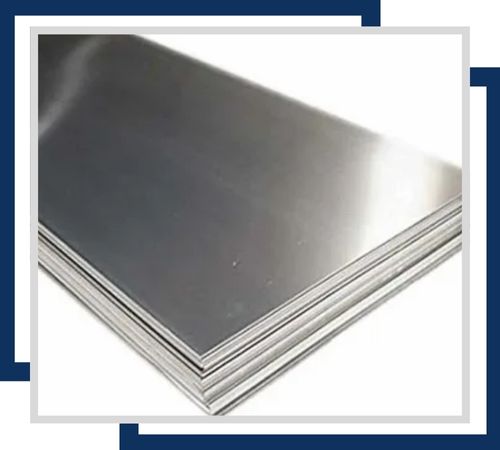

Polished plates offer excellent resistance to corrosion with a highly reflective finish through polishing. They have thicknesses in the range of 1-20 mm, and their dimensions could go up to 2000 mm x 1000 mm, commonly being used in decoration and architecture applications.
Njabulo Stainless is a leading supplier and stockist of high-quality stainless steel 309H sheet and plates in Cape Town, South Africa. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
Stainless Steel 309H sheets and plates find their place in various industries that demand high-temperature resistance and corrosion durability. You’ll often see them used in furnace parts, heat exchangers, boiler components, kiln linings, and chemical processing equipment. They’re also great for architectural projects that face extreme conditions. The material’s ability to handle thermal cycling while keeping its mechanical properties intact under heat is crucial for sectors like power generation, petrochemical, and food processing. Additionally, 309H sheets and plates are frequently utilized in the production of aerospace components, exhaust systems, and flue systems.
