Njabulo Stainless is a reliable manufacturer and supplier of SS 415 Sheets and Plates based in Cape Town, South Africa. Renowned for its dedication to quality, innovation, and customer satisfaction, Njabulo Stainless provides high-performance stainless steel solutions that adhere to international standards. With a focus on SS 415, the company offers durable and corrosion-resistant sheet and plate products suitable for a variety of industrial applications. Equipped with a state-of-the-art production facility and a team of skilled professionals, Njabulo Stainless caters to both local and international clients, ensuring timely and cost-effective solutions tailored to meet diverse engineering, construction, and manufacturing needs.
The SS 415 Sheets and Plates from Njabulo Stainless are martensitic stainless steels known for their enhanced hardness and moderate corrosion resistance. Their typical composition includes Chromium (12–14%), Carbon (0.05–0.15%), Manganese, Silicon, along with trace amounts of Nickel and Molybdenum. These elements work together to boost wear resistance and strength. The mechanical properties showcase a tensile strength of about 700 MPa, a yield strength of around 450 MPa, and hardness levels between 200 to 250 HB. SS 415 is also recognized for its good machinability and can be heat-treated to enhance toughness and structural integrity in challenging environments.
| Specifications : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME and API |
| Standard : | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface : | 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc. |
| Finish : | Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish |
| Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
| Grade | C | Mn | P | S | Si | Ch | Ni | Mo |
| SS 415 | 0.05 max | 0.50-1.00 | 0.030 max | 0.030 max | 0.60 max | 11.5-14.0 | 3.5-5.5 | 0.50-1.00 |
| Tensile Strength R₃ N/mm² | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 |
| 0.2% Offset Yield Strength Rᵖ ≥N/mm² | 520 | 520 | 520 | 520 | 520 | 520 | 520 |
| Elongation in 2 inches, % | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min |
| Grade | Density lbm/in3 | Melting Range(°F) | Thermal Conductivity(BTU-in/hr- ft. °F) | Electrical Resistivity(in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/°F x 10-6 | Specific Heat(BTU/lb/°F) |
|---|---|---|---|---|---|---|---|
| 415 | -at 68°F: 0.280 | 2700 to 2790 | 187 at 212°F | 23.7 at 68°F | 29 | 6.0 at 32 – 212°F | 0.11 at 68°F to 212°F |
| – | – | – | – | – | 7.5 at 68 – 1200°F | – |
Contact us to get a quick quote for your requirement.

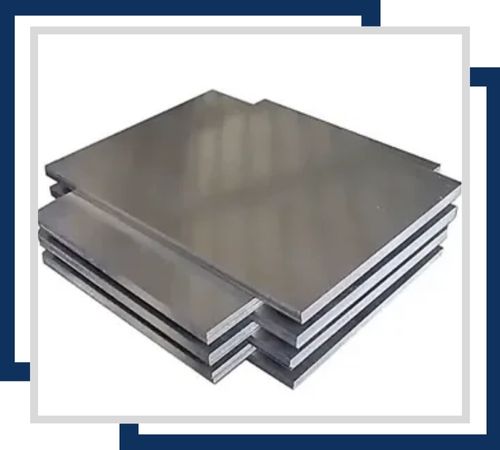

SS 415 Cold Rolled Sheets are stainless steel sheet with a bright surface finish, high strength, and excellent durability. Sheets available in various sizes between 0.3 mm to 3.0 mm thickness range and from 1000 mm to 2000 mm width with suitable applications.

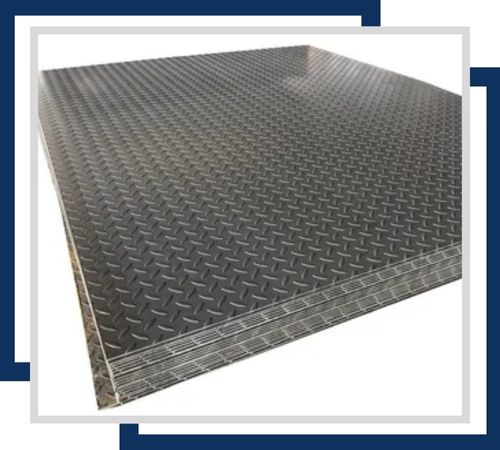

SS 415 chequered plates are stainless steel sheets with raised, textured patterns on them for maximum slip resistance and strength. It is available in various thicknesses and sizes, and it finds its application as a flooring or ramp material as well as an industrial application in the form of excellent corrosion resistance and aesthetic value.

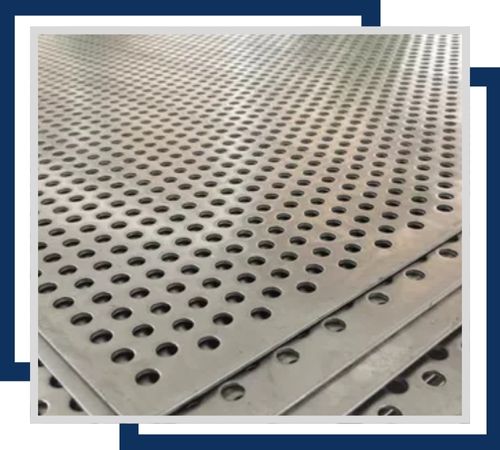

SS 415 perforated plates are of high-quality stainless steel sheets designed with precise holes to provide better ventilation, filtration, and strength. The plates can be available in a variety of sizes, with the standard being 4′ x 8′, or as custom sizes depending on the particular application in industries.

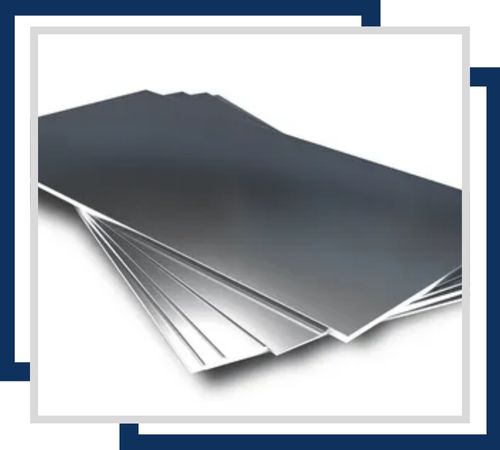

SS 415 Shim Sheets are precision engineered stainless steel sheets for industrial purposes. These have excellent corrosion resistance and strength with sizes ranging from 0.05mm to 5mm thickness and various lengths and widths, which can be customized according to the specific need.

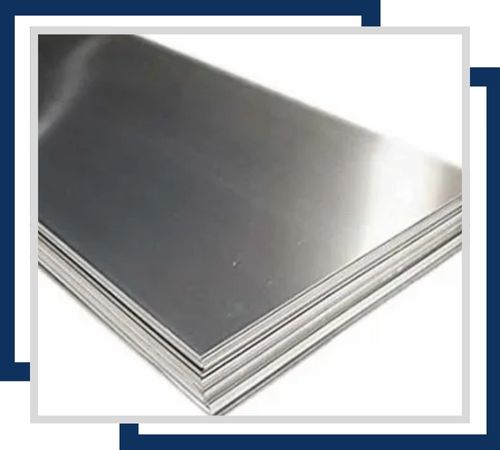

SS 415 Polished Plates are stainless steel sheets of great quality, highly recognized for corrosion resistance, strength, and shine. The SS 415 plates vary in different sizes, normally in the thickness between 0.5mm and 50mm. The product is available in any length and width as per the needs of various industrial applications.
Njabulo Stainless maintains a commitment for hassle-free experiences for our esteemed customers. Here, at this company, our high-quality SS 415 Sheet and Plates shall be offered completely documented to create a better buyer-seller market. Documents as commercial invoices, Packing lists, fumigation certificates, Heat Treatment Charts, QA plans, along with the Test Reports done with NABL approvals, these add value in maintaining the genuity and outstanding quality of products produced by this unit. In addition, we provide Stainless Steel 415 Sheets and Plates with various test certificates, such as MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificates, in order to prove our commitment to product excellence and customer satisfaction.
Njabulo Stainless’s SS 415 Sheets and Plates are popular across a range of industries thanks to their impressive strength, toughness, and decent resistance to corrosion. You’ll often find them in the production of valves, pump parts, shafts, and other mechanical components that face wear and moderate corrosive conditions. In construction, they’re a go-to choice for structural elements that need to be both durable and easy to shape. Plus, these sheets and plates are perfect for automotive parts, petrochemical equipment, and machinery used in food processing. Njabulo Stainless takes pride in ensuring that every SS 415 product is meticulously engineered to meet the unique needs of various industrial and engineering applications, not just in Cape Town but far beyond.
