AWS Class ER317L MIG and TIG Filler Welding Wire and Rod

Home > Electrodes > AWS Class ER317L Mig & Tig Filler Welding Wire & Rod

AWS/ASME 5.14 ER317L MIG & TIG Filler Wire Manufacturer in Cape Town, SFA A5.9 ER317L MIG & TIG Filler Rod Supplier in Gqeberha, Alloy ER317L Welding Mig & Tig Filler Wire Exporter in Johannesburg, UNS S31783 Mig and Tig Stick Filler Metal Trader in Mbombela, AWS ER317L Mig & Tig Filler Metal Rod & Wire Germiston, AWS Class ER317L Metal Inert Gas (MIG) Welding Mbombela

Njabulo Stainless, located in Cape Town, South Africa, specializes in providing top-notch AWS Class ER317L MIG and TIG filler welding wire and rods. These products are expertly crafted for welding austenitic stainless steels, boasting enhanced corrosion resistance. Designed to perform exceptionally well in tough environments like chemical processing and marine applications, Njabulo Stainless guarantees that their ER317L wires and rods adhere to strict international quality standards, ensuring consistent weld integrity, robust mechanical properties, and dependable corrosion protection.

Stainless Steel Industrial ER317L MIG / TIG Filler Wire Price List in Durban, Aws Class ER317L MIG /TIG Filler Welding Wire South Africa, Stainless Steel ER317L Mig & Tig Filler Wire Supplier in Cape Town, South Africa, SS ER317L MIG & TIG Filler Metal Distributor in Durban, AWS Class ER317L MIG & TIG Filler Metal Exporters Gqeberha, UNS S31783 AWS Class ER317L MIG and TIG Filler Welding Wire and Rod Durban

The ER317L filler metals feature a chemical makeup that’s rich in chromium (18-20%), nickel (12-15%), and molybdenum (2-3%), while keeping carbon content low to prevent carbide precipitation and minimize the risk of intergranular corrosion. This unique blend offers outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking. The resulting weld metal typically showcases high tensile strength and good ductility, making it ideal for critical applications that face harsh conditions.

AWS Class ER317L MIG and TIG Filler Welding Wire and Rod Specifications

Classification	AWS A5.9, ER317L
Form	MIG spools, TIG cut lengths, Reels and Coils
Type Of Welding	Inert Gas Welding
Current	MIG-DCEP / TIG-DCEN
Diameters	.023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8”
Standard TIG straight lengths are available	36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request.
AWS ER317L MIG & TIG Filler Metal Application & uses	Hardware tools Metallurgy Machinery Construction Shipbuilding Petroleum Chemical plant Power sector Gas Industry

AWS Class ER317L MIG and TIG Filler Welding Wire and Rod Chemical Composition

C	Cr	Ni	Mo	Mn	Si	P	S	Cu
0.03	18.5-20.5	13.0-15.0	3.0-4.0	1.0-2.5	0.30-0.65	0.03	0.03	0.75

AWS Class ER317L MIG and TIG Filler Welding Wire and Rod Mechanical Properties

Tensile Strength, kpsi:	83*
Yield Strength, kpsi:	60*
Elongation %:	42*

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Why Choose AWS Class ER317L MIG and TIG Filler Welding Wire and Rod from Njabulo Stainless?

Largest Inventory

Customer Support

On Time Deliveries

ISO Certified

Types of AWS Class ER317L MIG and TIG Filler Welding Wire and Rod

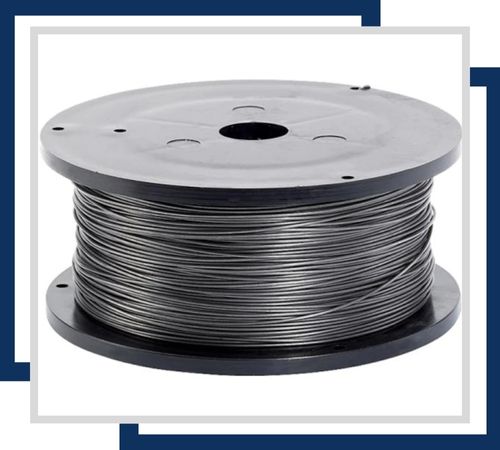

Stainless Steel ER317L MIG Filler Wire

This MIG filler wire is available in sizes such as 0.030″, 0.035″, and 0.045″ diameter. It offers excellent corrosion resistance and is ideal for welding stainless steels with high molybdenum content. Its low carbon content helps minimize carbide precipitation.

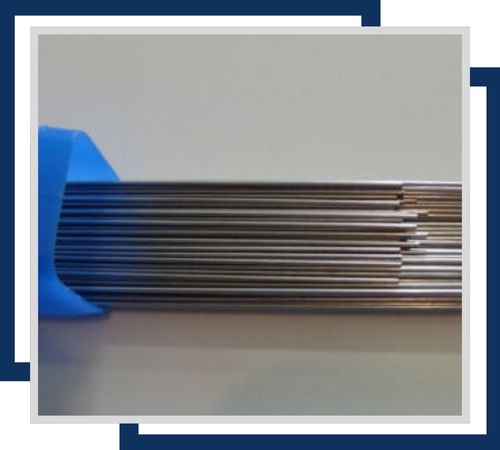

Stainless Steel ER317L TIG Filler Wire

Available in diameters like 1/16″, 3/32″, and 1/8″, this TIG filler wire provides superior corrosion resistance. It is suitable for welding similar stainless steel alloys and maintains a low carbon content to prevent carbide formation.

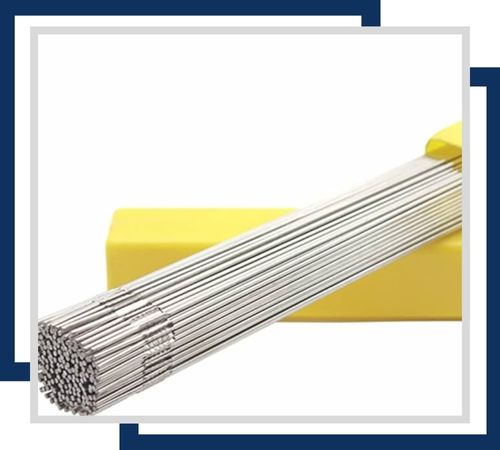

Stainless Steel ER317L TIG Filler Rod

Typically offered in sizes of 1/16″, 3/32″, and 1/8″ diameter, this filler rod is known for its excellent resistance to corrosion and high strength. It’s designed for use in TIG welding applications requiring enhanced resistance to pitting and crevice corrosion.

These ER317L filler metals are commonly used for fabricating and repairing chemical tanks, heat exchangers, pipelines, and marine structures. They work seamlessly with both MIG and TIG welding processes, producing smooth, clean welds with excellent arc stability and easy slag removal. This makes them a go-to choice for demanding stainless steel welding projects that require both durability and corrosion resistance.

AWS A5.9 ER317L MIG & TIG Welding Filler Rod Manufacturer in Cape Town, AWS Class ER317L MIG & TIG Filler Metal Stockist in Gqeberha, MIG & TIG Filler Rods Mbombela, MIG & TIG Filler Metal Stockist Germiston, AWS Class ER317L Tungsten Inert Gas (TIG) Welding South Africa

AWS Class ER317L MIG and TIG Filler Welding Wires and Rods Uses

AWS Class ER317L is primarily used for welding austenitic stainless steels such as 317 and 317L. Offering excellent corrosion resistance and oxidation and pitting in a variety of environments. Including acidic and chloride-containing solutions. ER317L is suitable for incorporation into stainless steel in industries such as pharmaceutical, food processing, pharmaceutical, pulp and in papermaking. The low carbon content reduces the risk of carbide precipitation, making it ideal for applications where post-weld heat treatment is not feasible or practical on the snow.
