AWS Class ER316/316H MIG and TIG filler welding wire and rod are top-notch consumables crafted for welding austenitic stainless steels, especially in situations where you need superior creep resistance at high temperatures. These filler metals fall under the AWS A5.9 classification and are widely utilized in sectors like petrochemical, power generation, and marine engineering.
The ER316/316H filler metals mainly consist of chromium (16.0–18.0%), nickel (10.0–14.0%), and molybdenum (2.0–3.0%), with a carbon content capped at 0.03%. This unique blend offers remarkable resistance to pitting and crevice corrosion, along with excellent weldability and strength even at elevated temperatures. In terms of mechanical properties, you can expect a tensile strength of around 580 MPa, a yield strength of about 390 MPa, and an elongation of roughly 40%, showcasing good ductility and toughness. ([ThePipingMart Blog][1])
| Classification | AWS A5.9, ER316/316H |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER316/316H MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.03 | 18.0-20.0 | 11.0-14.0 | 2.0-3.0 | 1.0-2.5 | 0.30-0.65 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 80 |
| Tensile Strength, kpsi: | 55 |
| Elongation%, min: | 40 |
Contact us to get a quick quote for your requirement.

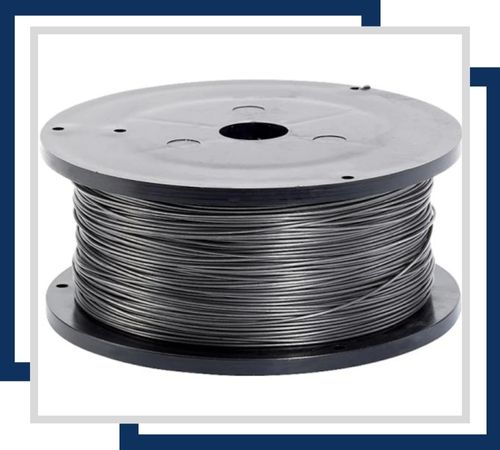

ER316/316H MIG filler wire provides excellent corrosion resistance and strength, ideal for welding stainless steels in chemical, petrochemical, and marine applications, with high durability in harsh environments.

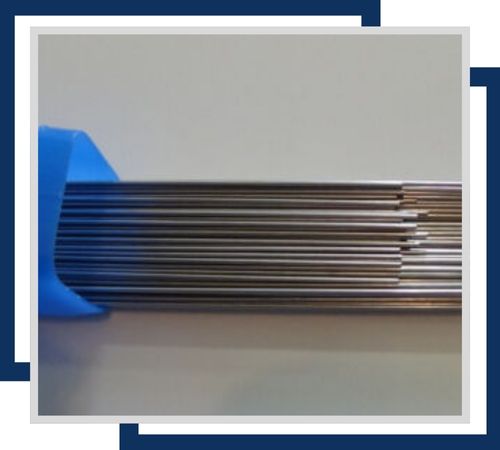

ER316/316H TIG filler wire ensures superior corrosion resistance and strength for precise welding of stainless steels, suitable for high-temperature environments in industries like chemical processing and aerospace.

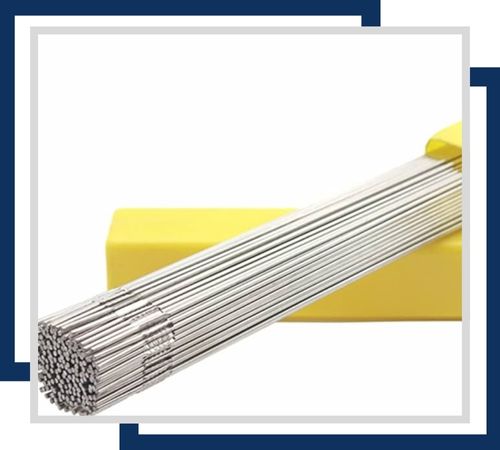

ER316/316H TIG filler rod offers excellent resistance to corrosion and high temperatures, ideal for welding and repairing stainless steel components in demanding applications, including chemical and marine industries.
We conduct rigorous in-house testing to ensure the highest quality and performance standards for our AWS Class ER316/316H MIG and TIG Filler Welding Wire and Rod. Our commitment to quality includes thorough inspection processes to meet industry requirements. Ensuring reliable and consistent products. With a focus on timely service, we guarantee prompt delivery, ensuring that our customers receive their orders without delay, every time.
ER316/316H filler metals are perfect for welding parts that face high temperatures and corrosive conditions. You’ll often find them in applications like steam piping, superheater headers, furnace components, and in petrochemical and power plants. They’re also a great choice for welding 321/321H and 347/347H grades for high-temperature service. ([xiangind.com][2])
